Intro to ARduino

UBLMKB-30-3 _ Architectural Representation & Modelling

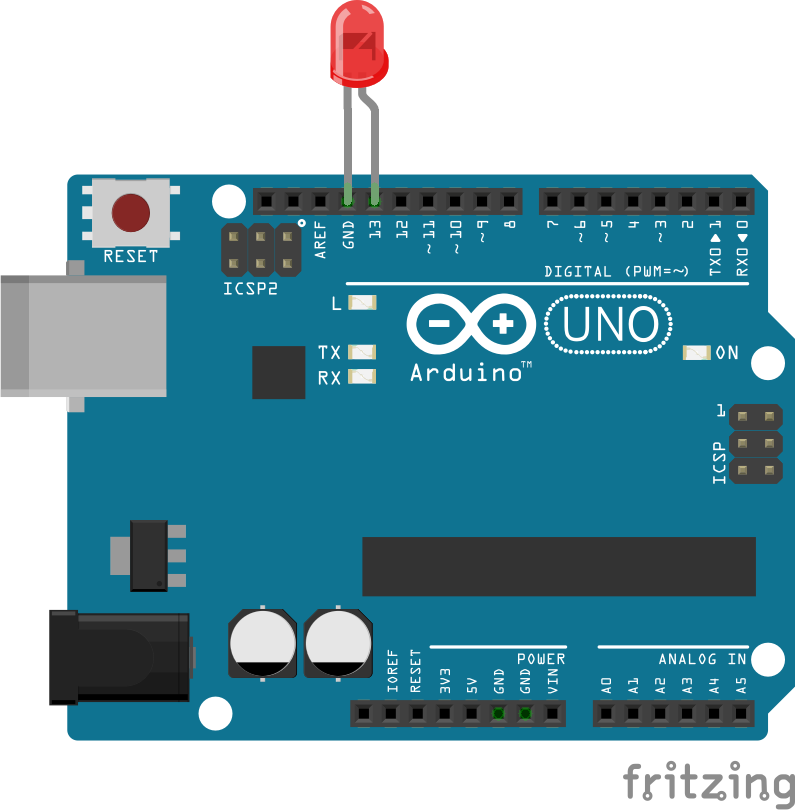

Code 01 | Blink

Assembly List

Amount Part Type Properties
1 Red (633nm) LED leg yes; package 5 mm [THT]; color Red (633nm)
1 Arduino Uno (Rev3) type Arduino UNO (Rev3)

CoDe 02 | Serial Com

Assembly List

Amount Part Type Properties
1 Arduino Uno (Rev3) type Arduino UNO (Rev3)
1 Rotary Potentiometer (Small) size Rotary - 9mm; package THT; type Rotary Shaft Potentiometer; maximum resistance 100kΩ; track Linear

Code 03 | Dimmer | Potentiometer + LED

Assembly List

Amount Part Type Properties
1 Red (633nm) LED leg yes; package 5 mm [THT]; color Red (633nm)
1 Arduino Uno (Rev3) type Arduino UNO (Rev3)
1 Rotary Potentiometer (Small) size Rotary - 9mm; package THT; type Rotary Shaft Potentiometer; maximum resistance 100kΩ; track Linear
1 560Ω Resistor bands 4; tolerance ±5%; package THT; resistance 560Ω; pin spacing 400 mil

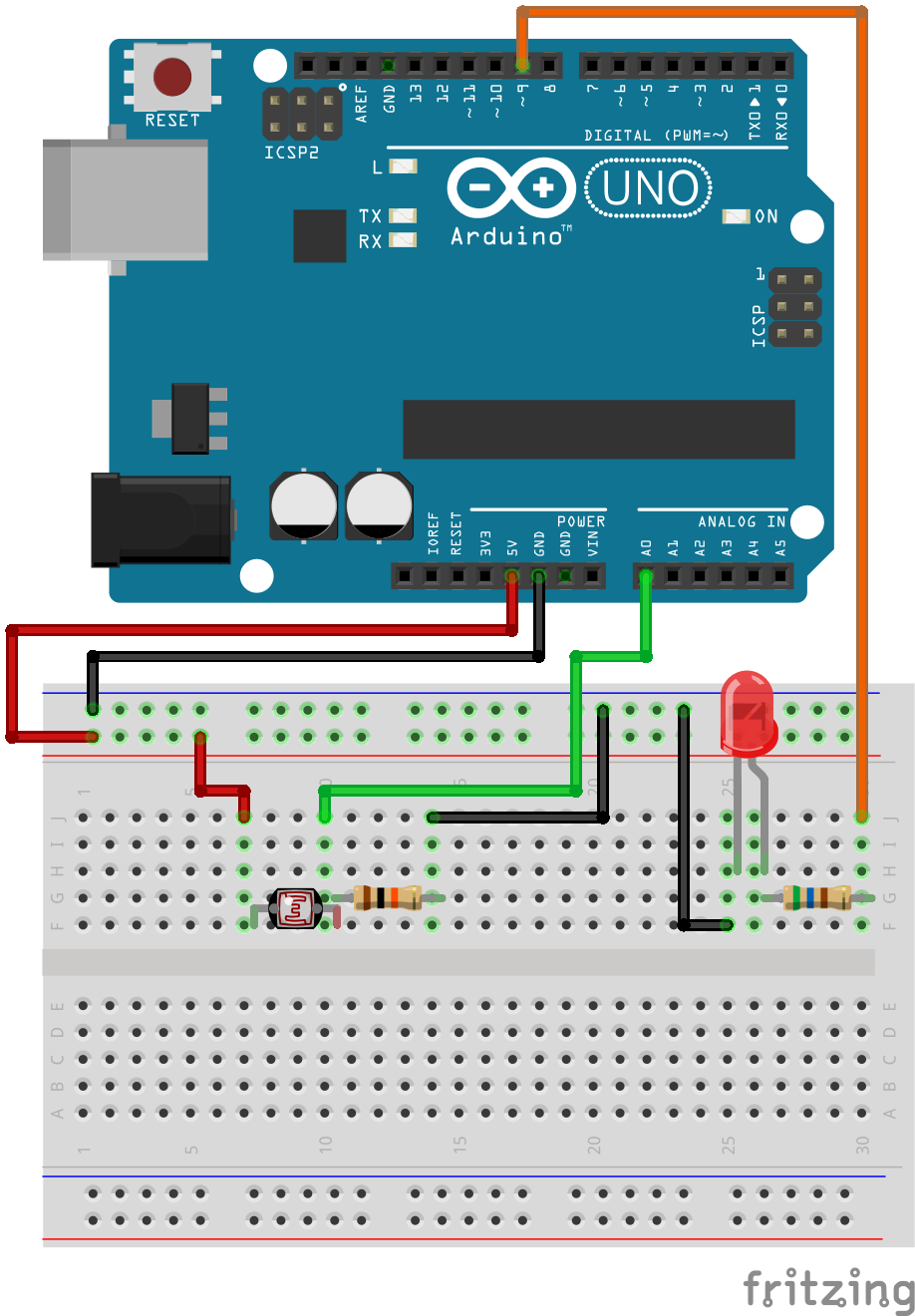

Assembly List

Amount Part Type Properties
1 Red (633nm) LED leg yes; package 5 mm [THT]; color Red (633nm)
1 Arduino Uno (Rev3) type Arduino UNO (Rev3)
1 560Ω Resistor bands 4; tolerance ±5%; package THT; resistance 560Ω; pin spacing 400 mil
1 Photocell (LDR) resistance@ luminance 16 kOhms@ 10 lux; package THT; resistance@ dark 300 kOhms@ 10 seconds
1 10kΩ Resistor bands 4; tolerance ±5%; package THT; resistance 10kΩ; pin spacing 400 mil

Code 04 | Servo

Assembly List

Amount Part Type Properties
1 Basic Servo
1 Arduino Uno (Rev3) type Arduino UNO (Rev3)

Code 05 | Servo + Sensor

Assembly List

Amount Part Type Properties
1 Basic Servo
1 Arduino Uno (Rev3) type Arduino UNO (Rev3)
1 Photocell (LDR) resistance@ luminance 16 kOhms@ 10 lux; package THT; resistance@ dark 300 kOhms@ 10 seconds
1 10kΩ Resistor bands 4; tolerance ±5%; package THT; resistance 10kΩ; pin spacing 400 mil
